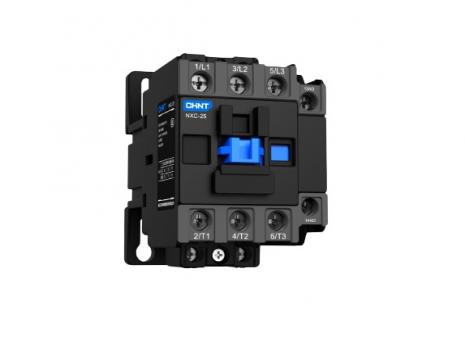

CHINT NXC AC CONTACTOR

Feature a novel appearance and a compact structure.

Mainly used for frequent starts and control of AC motors as well as remote circuit making/breaking.

They can also be combined with appropriate thermal overload relays to form electromagnetic starters.

• Rated Operation Current Ie : 6A ~630A

• Rated Operation Voltage Ue: 220V~690V

• Number of poles: 3P (Three Poles)

• Built-in Auxiliary Contact: 1NO & 1 NC

• Mechanical endurance: 120 000 cycles

• Compliant Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1

• NXC-06, 3 Poles, 2.20kW, Max Operation Current: 6A

• NXC-09, 3 Poles, 4.00kW Max Operation Current: 9A

• NXC-12, 3 Poles, 5.50kW Max Operation Current: 12A

• NXC-18, 3 Poles, 7.50kW Max Operation Current: 18A

• NXC-25, 3 Poles, 11.0kW Max Operation Current: 25A

• NXC-32, 3 Poles, 15.0kW Max Operation Current: 32A

• NXC-40, 3 Poles, 18.5kW Max Operation Current: 40A

• NXC-50, 3 Poles, 22.0kW Max Operation Current: 50A

• NXC-65, 3 Poles, 30.0kW Max Operation Current: 65A

• NXC-85, 3 Poles, 37.0kW Max Operation Current: 85A

• NXC-100, 3 Poles, 45.0kW Max Operation Current: 100A
