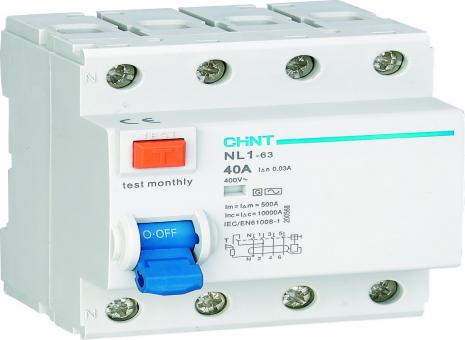

CHINT NL1-63 Residual Current Circuit Breaker (RCCB)

Protect people against indirect contact and additional protection against direct contacts.

Protect installations against fire hazard due to insulation faults.

Control electric circuits.

• Type (wave form of the earth leakage sensed): AC, A, AC-G, A-G,AC-S,A-S,A-SI

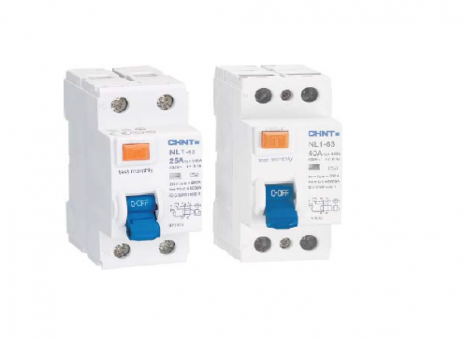

• Number of poles: 2P / 4P (Two Poles / Four Poles)

• Rated Voltage Ue: 230/400 ~ 240/415 v

• Insulation Voltage Ui: 500V

• Mechanical endurance: 2000 cycles

• Compliant Standards: IEC/EN 61008-1

• 30mA - additional protection against direct contact

• 100mA - coordinated with the earth system, to provide protection against indirect contacts

• 300mA - protection against indirect contacts, as well as fire hazard

• CHINT NL1-63: 25A

• CHINT NL1-63: 40A

• CHINT NL1-63: 63A
